What makes Electro Arc tabletop DC metal disintegrators the best.

Good reasons to choose a DC tabletop machine:

• Holds the work firmly in place
• Everything needed is built-in, ready and in one place
• DC offers more cutting power over larger diameters than AC
• Best choice for an established maintenance or production shop

Features of all our DC tabletop machines

• Solid cast, ground worktop
• T-Slots that accept T-bolts for anchoring workpieces
• Troughs to catch and recycle coolant from the process.

Base/Cabinet

• Supports the worktop at a convenient height
• Holds the power supply, coolant system and control panel
• Heavy-duty casters for easy movement around the shop
• Levelers for stability in operation

Built-in Coolant System

• Provides coolant for the disintegration process
• Worktop captures coolant for recycling
• Internal pump provides 90 psi coolant pressure
• Internal tank with filter

Superstructure (Head Support)

• Sturdy, firmly-mounted column
• Single or double crossarm rises, swings and extends
• Rigidly supports operating head all over work surface.

We make 6 DC Tabletop models in 4 series
based on worktop/cabinet size.

Each machine is built to order.
Each series includes models, each named for
its table size, head, superstructure and feed system.
The example shown is Model 2-DVC.

2 for the table size
DV for the dual/vertical crossarms
C for the DC Servo Head

A Single Crossarm
would make it a 2-DC.


The Lift Rack shown
comes on models with
heavier head/feed/
crossarm combinations
but doesn’t change the
model name.

AC OR DC WHATS THE DIFFERENCE?

HOW METAL DISINTEGRATION WORKS

Electro Arc tabletop DC metal disintegrator Series lineup.

All DC Tabletop models have a Servo Head with built-in Automatic Feed. Larger models offer two crossarm and two column options.

Start by selecting a table top large enough to handle your biggest work piece.

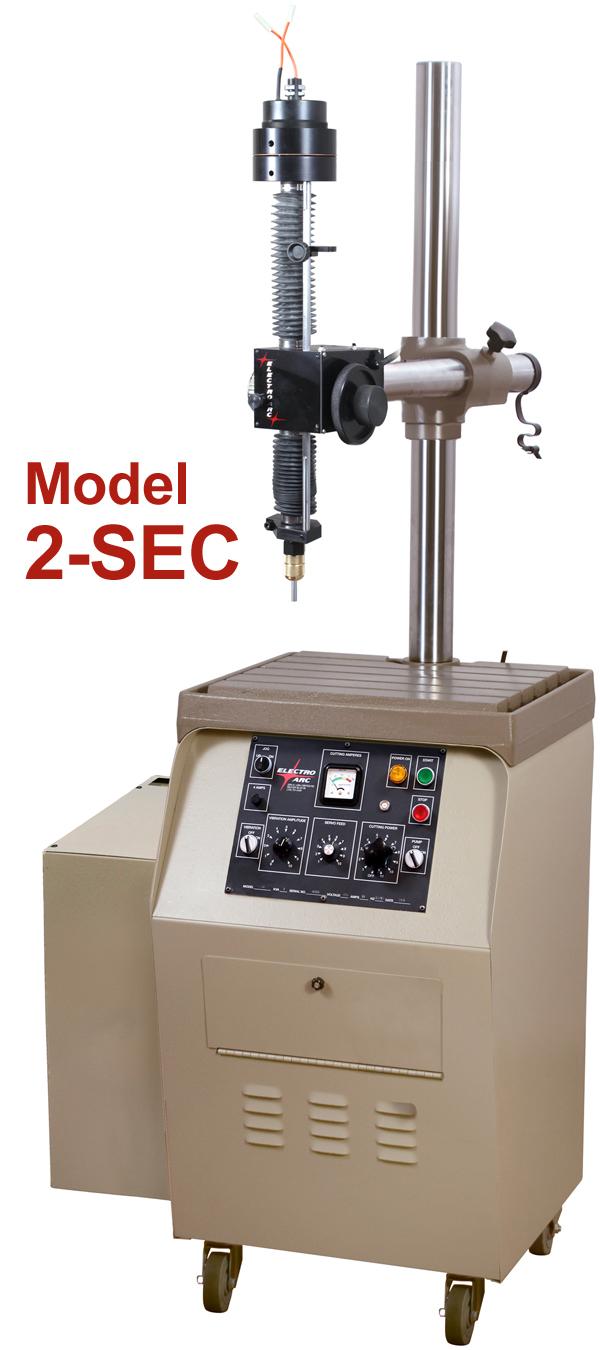

2-SEC

Work top 19 x 19” (481 x 481mm)

Capacity: 1500 lb (506 kg)

Column 2-3/4” (70 mm) diameter x 36” (914 mm)

2-SEC SPEC SHEET

Opens downloadable PDF

Crossarm specs:

Double Crossarm
36” (914 mm) long 1-1/2” (38 mm) dia.
Single Crossarm
36” (914 mm) long 2-3/4” (70 mm) dia.

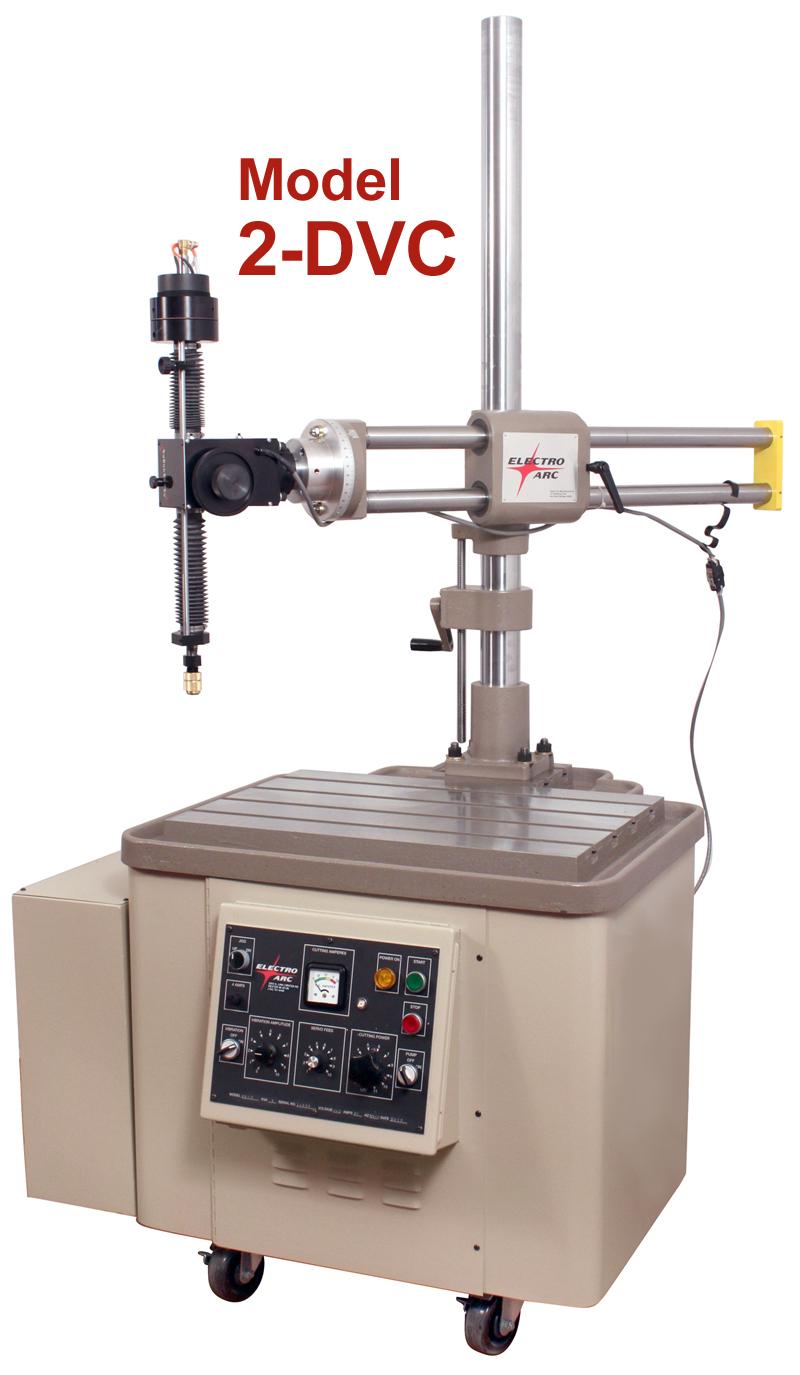

2-DVC

Work top 31” x 31” (795 x 795mm)

Capacity: 2000 lb (956 kg)

Column 2-3/4” (70 mm) diameter x 50” (1270 mm) high

2-DC Single Crossarm

2-DVC SPEC SHEET

Opens downloadable PDF

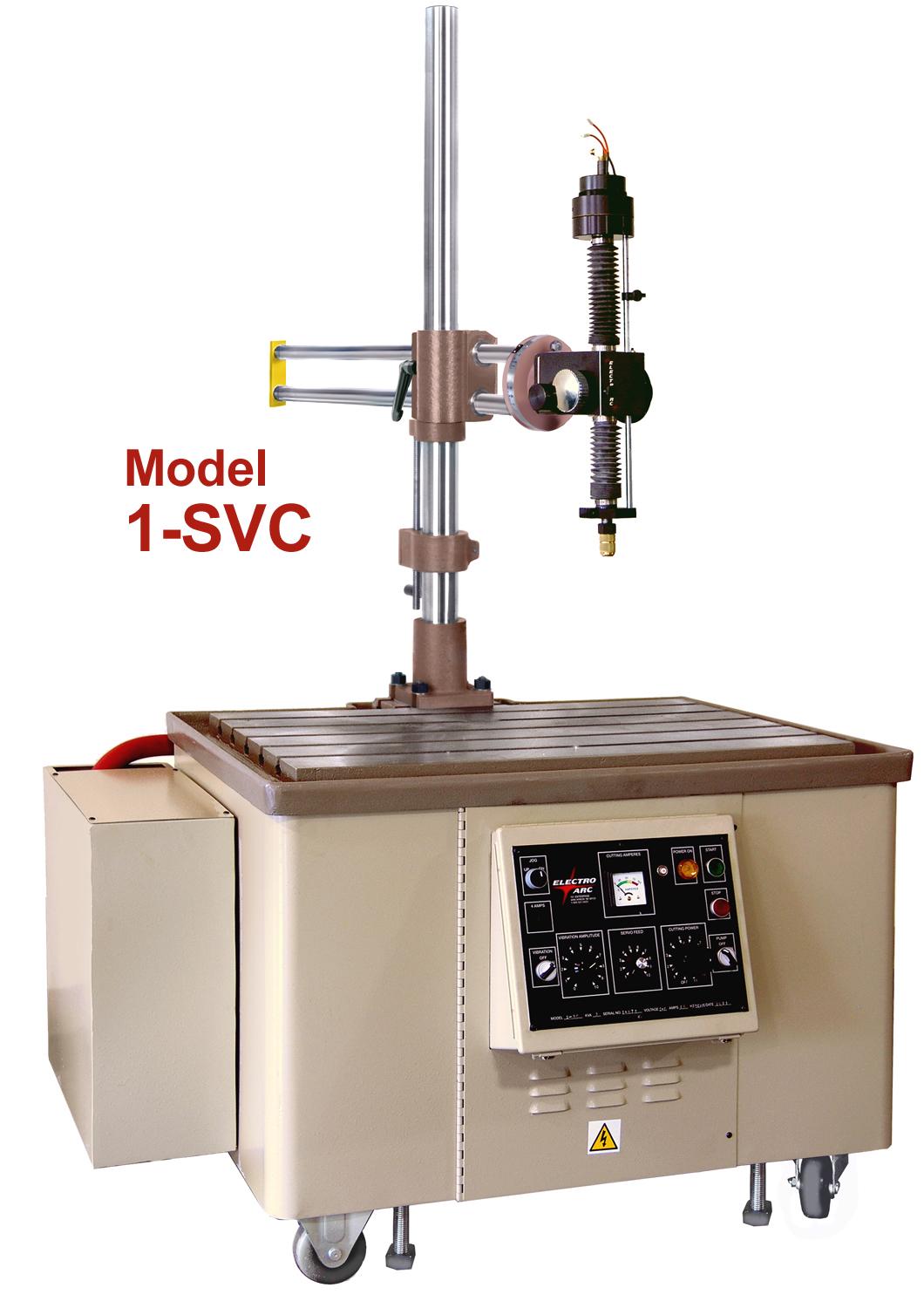

1-SVC

Work top 40” x 32” (1020 x 820mm)

Capacity: 4000 lb (1912 kg)

Column 2-3/4” (70 mm) dia. x 50” (1270 mm) high

Double Crossarms 36” (914 mm) x 1-1/2” (38 mm)

1-SC Single Crossarm

2-SVC SPEC SHEET

Opens downloadable PDF

Lift Rack on Double Crossarm models only

HK-6VC

Work top 51” x 39.5” (1300 x 1005 mm

Capacity: 8000 lb (3824 kg)

Column 2-3/4” (70 mm) dia.x 50” (1270 mm) high

Double Crossarms 36” (914 mm) x 1-1/2” (38 mm)

HK-6C Single Crossarm

HK-6VC SPEC SHEET

Opens downloadable PDF

Like our machines? Contact us for pricing.

Every model comes with its own detailed, illustrated operator manual including
electrode/collet/settings Selector Chart customized for the specific machine.

REQUEST MORE INFO
